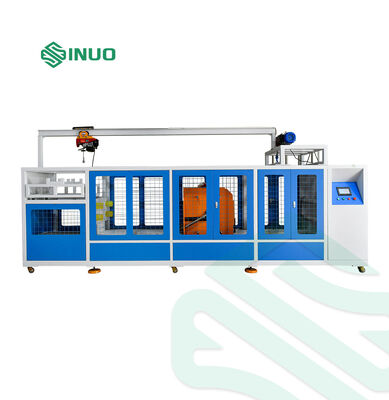

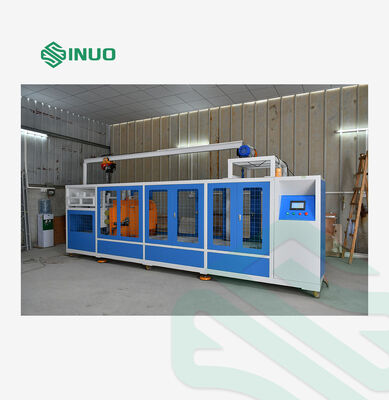

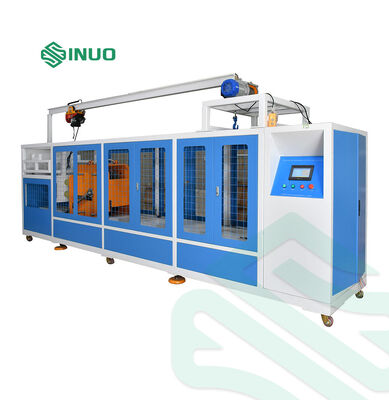

IEC 62196-1 Vehicle Run-Over Resistance Test Equipment for Plugs & Connectors

IEC 62196-1 Vehicle Run-Over Resistance Test Equipment for Plugs & Connectors

Наименование марки:	Sinuo
Номер модели:	SNQC1010
МОК:	1
цена:	Customized
Условия оплаты:	Т/Т
Способность к поставкам:	5 комплектов в месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

Calibration Certificate (Cost Additional)

Испытательная станция:

Одна станция

Режим работы:

Программно-управляемое или ручное управление, можно переключать

Переехать:

0 ~ 2,0 м

Превышение скорости:

(8±2) км/ч, скорость регулируется двигателем

Давление в шинах:

(220±10) кПа или (218±13) кПа

Источник питания:

Трехфазный переменный ток 480В±10%/60Гц, мощность 15кВт

Упаковывая детали:

фанера

Поставка способности:

5 комплектов в месяц

Описание продукта

IEC 62196-1 Vehicle Run-Over Resistance Test Equipment for Plugs & Connectors

Product information:

The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground.

Compliance Standards:

Conforms to IEC 62196-1: 2022 clause 33, UL 2594:2016 clause 58.

Technical parameters:

Test station	Single station
Electrical control method	PLC intelligent integrated control, 7-inch color human-machine touch interface operation
Operation mode	Program-controlled operation or manual, can be switched
Drive over power system	Motor plus worm gear acceleration and deceleration
Drive over stroke	0~2.0m
Load Carrying	A. Crushing force (5000±250) N B. Crushing force (11000±550) N C. Crushing force 4893 N (1100 lbf)
Drive over speed	(8±2)km/h, speed adjustable by motor
Drive over method	It is driven by a linear motor module to simulate the forward and backward reciprocating motion of rolling tires. This simulates the damage caused by accidental crushing of the charging nozzle head of the charging pile when the car is moving forward or reversing in reality.
Rolling force adjustment	Using weights, the force range is 4890~11000N adjustable, and the weights are loaded and unloaded by cantilever crane.
Drive over tires	Equipped with one P225/75 R15 tire and one matching wheel hub, a set of tire inflation devices (inflation interface and air pressure gauge) Equipped with 11000N load-bearing tire and a matching wheel hub.
Drive over tire pressure	(220±10) kPa or (218±13)kPa
Load bearing base plate	Base plate with cement/concrete floor, can be equipped with fixing clamps.
Timing count display	Touch screen design parameters can be set within standard requirements.
Deceleration method	Our company has designed a braking mechanism to prevent rigid collisions.
Safety protection	The whole machine is equipped with a protective fence to prevent the wheels from accidentally deviating and prevent mechanical injuries to personnel It has a fixed mechanical crane arm, which is convenient, labor-saving and safe to load weights It has a leakage protection switch It has a motor overload protection It has a door lock safety protection function, and the trolley cannot move when the door is opened
Usage environment	Power supply: Three phase AC480V±10%/60Hz, power 15KW Overall dimensions: approximately W4700D1300H3000mm; weight: approximately 2400kg
