Оборудование для испытаний соединителя EV

EV Connector Testing Equipment with 500N Applied Force and Four-Directional Force Application for Offset Misalignment Test

Наименование марки:	Sinuo
Номер модели:	SNQC1017
МОК:	1
цена:	Customized
Условия оплаты:	Т/Т
Способность к поставкам:	30 комплектов/месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

Calibration Certificate (Cost Additional)

Время применения силы:

0 ～ 999 .9s

Прикладное значение силы:

0-500N

Количество испытаний:

0-999999 раз

Время интервала:

0999.9s

Приблизительный вес оборудования:

200 кг

Платформа поддержки привода:

1200 × 800 × 1500 мм (W × D × H);

станция:

Одна станция

Кабинет:

500 × 400 × 1400 мм (W × D × H);

Упаковывая детали:

Фанерный корпус

Поставка способности:

30 комплектов/месяц

Выделить:

500N Applied Force EV Connector Testing Equipment

Four-Directional Force Application Offset Misalignment Test Apparatus

PLC Control and Touchscreen Operation EV Charging Interface Misalignment Tester

Описание продукта

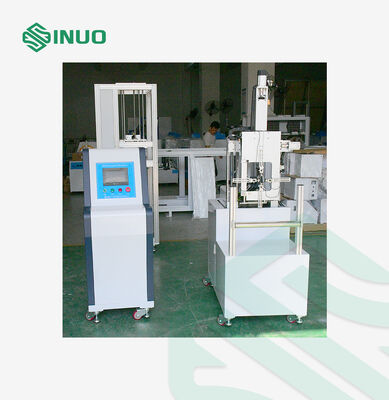

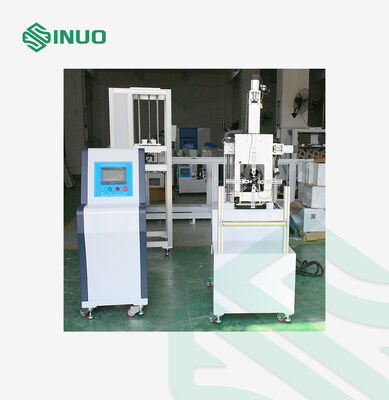

EV Connector Testing Equipment

Specialized apparatus for simulating operational offset forces and testing compressive strength of EV connectors during charging interface misalignment scenarios.

Compliance Standards

This test equipment conforms to UL2552-2022, clause 54C.3 and Figure 54C.2, IEC62196-1.

Equipment Overview

Samples and Restrictions: Charging interface
Application: Applies up, down, left, and right forces to the gripping point of the charging gun to simulate offset operation during normal use and verify compressive strength in all directions
Test Principle: Servo motor drives manipulator to apply force in four directions (-X, +X, -Y, +Y) with force values and interval times according to standard requirements

Equipment Structure & Characteristics

PLC control system with touchscreen operation and four-directional force sensors for monitoring
Single independent workstation for testing one sample in four directions
Separate control cabinet and actuator design allows actuator support platform placement in constant temperature chambers

Physical Specifications

Actuator Support Platform: 1200 * 800 * 1500 mm (W * D * H)
Control Cabinet: 500 * 400 * 1400 mm (W * D * H)
Approximate Weight: 200 kg

Usage Environment

Power Supply: AC220V±10%/50-60Hz
Operating Temperature: 5-35℃
Humidity: 30%-90%

Technical Parameters

Parameter	Specification
Control and Operation Method	PLC control, touch screen operation
Station Configuration	SNQC1016A-1 Single station
Force Direction	+X, -X, +Y, -Y applied sequentially (program customizable)

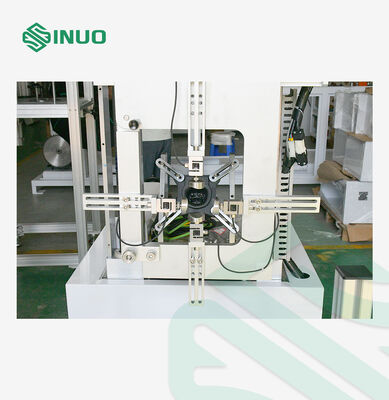

Force Applying Mechanism	YZ axis vertical axis automatic manipulator, X axis adjustable

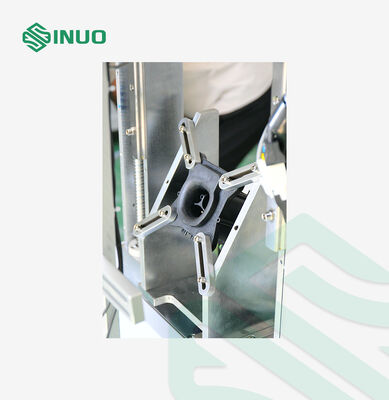

Specimen Fixture	Universal arc-shaped clamp for most charging guns, V-shaped clamp adjustable 200mm left/right
Applied Force Value	0-500N, preset with force sensor monitoring and automatic system control
Interval Time	0-999.9s, preset
Force Application Time	0-999.9s, preset
Number of Trials	0-999999 times, preset
Socket Center Distance to Ground	1m, mounting plate tilted 30° (from vertical direction)
Protection Features	Overload protection, leakage protection, short circuit protection
