Product Overview

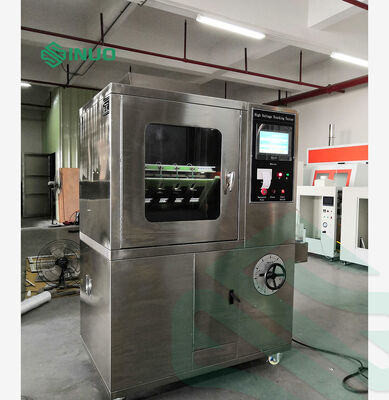

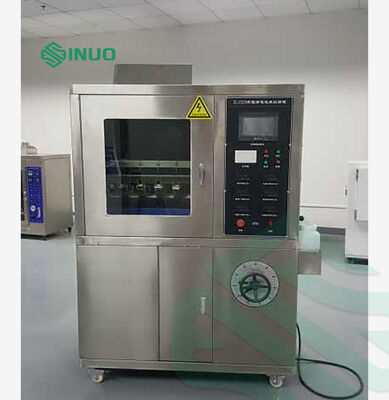

The SN774B High-Voltage Tracking Tester is fully engineered in strict compliance with GB/T 6553-2024 & IEC 60587:2022, the globally recognized standards for evaluating tracking & erosion resistance of electrical insulating materials under severe polluted, humid working environments.

Designed for constant-voltage testing (Method 1 specified in Clause 6.4 of both standards), this equipment simulates real-world harsh service conditions: power-frequency high voltage plus dripping contaminant electrolyte on 45° inclined test specimens. It quantitatively tests tracking and erosion performance of thermosetting/thermoplastic plastics, EV cable insulation, electrical insulators and wiring accessories, and grades material anti-tracking capability for new material R&D, incoming QC and third-party certification inspection.

Technical Parameters

Electrical Schematic Diagram

Application Industries

• New Energy EV parts manufacturers

• Electrical insulator factories

• Engineering plastic compounding plants

• Home appliance labs

• Third-party testing & certification institutions

• Electrical component suppliers

Key Product Advantages

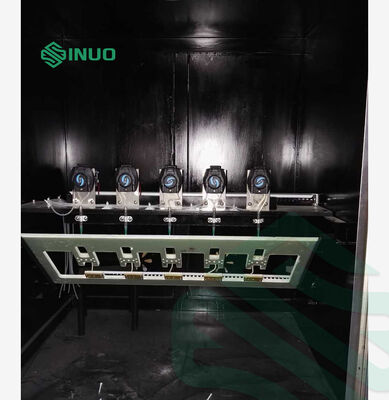

1. 5-station sequential automatic test: Single high-voltage power source switches sequentially among 5 specimen fixtures to improve batch testing efficiency;
2. PLC+7-inch industrial touchscreen intelligent control: Full-process parameter presetting, auto timing & auto pass/fail judgment after test completion;
3. High-precision peristaltic pump dripping system: Ultra-stable contaminant liquid flow with error less than 0.2%;
4. Multi-layer safety protection: High-voltage door interlock + over-current auto cut-off + full equipment grounding protection;
5. Data traceability: Real-time voltage/current/time display, test data saving & USB-report export for certification filing.
