IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

Наименование марки:	Sinuo
Номер модели:	SN442
МОК:	1
Условия оплаты:	Т/Т
Способность к поставкам:	10 комплектов в месяц

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

Calibration Certificate (Cost Additional)

Диапазон расхода:

00,667-4,167 л/мин

Зона капель:

1000*1000 мм

Подача теста:

1~1.5mm/min (IPX1), 3~3.5mm/min (IPX2)

Высота воды капая:

200 мм

Материал кузова оборудования:

Промышленный алюминиевый сплав

Время тестирования:

1-9999 секунд

Контроль:

PLC & 7" экран касания

Поворотный столик:

1-5r/ минута, может быть набором

Упаковывая детали:

ЭКСПОРТНАЯ УПАКОВКА

Поставка способности:

10 комплектов в месяц

Выделить:

PLC Touch Screen Control Water Ingress Testing Equipment

Industrial Aluminum Alloy Body IPX1/IPX2 Test Chamber

1000*1000mm Drip Area IEC 60529 Test Equipment

Описание продукта

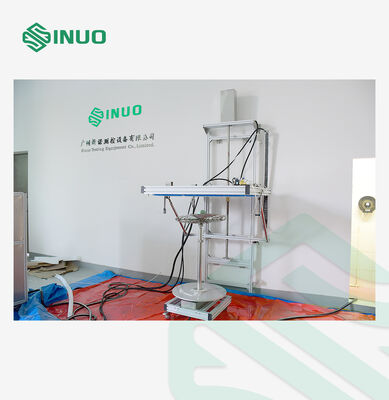

IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

This testing equipment evaluates protection against vertically falling water droplets. Designed and built in compliance with IEC60529 standards for IPX1 and IPX2 water protection testing.

Compliance Standards

This testing equipment is used to evaluate protection against vertically falling water. It is designed and built in compliance with the standard requirements of IEC60529 for IPX1 and IPX2.

Product Overview

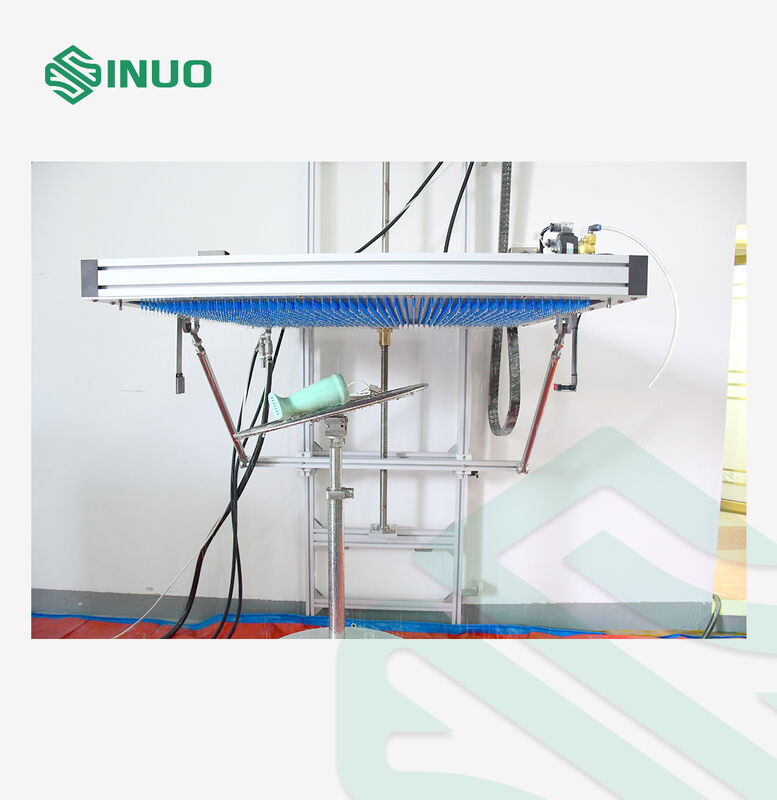

Vertical movement of the drip box is motor-driven
Electrical control cabinet equipped with PLC and touchscreen interface
Fine stainless steel filter for debris filtration
Utilizes compressed air (provided by user) to clear water from needles, preventing blockage

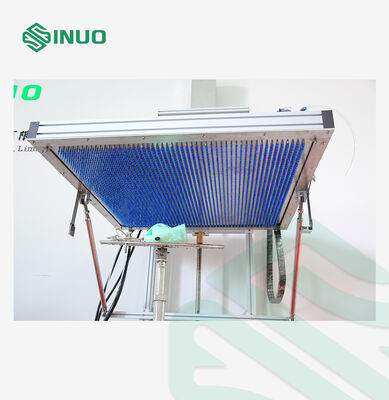

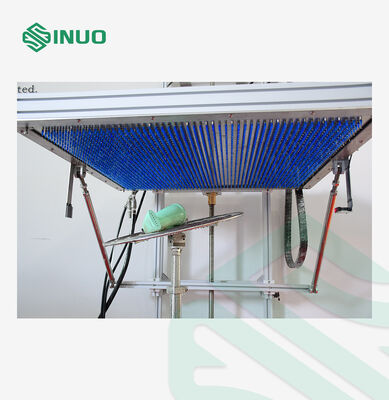

Stainless steel standard medical needle nozzles, readily available and corrosion-resistant
Needle nozzles feature tapered connections for tool-free replacement

Technical Parameters

Item	Specifications
Power supply of this equipment	Three phase AC380V, 50Hz, 4KW
Power supply for test sample	Single phase AC220V, 16A
LWGYD-4 flow rate Sensors	Flow range: 0.667-4.167 L/min, pulse output
Small water pump	Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range	IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2	Drip area: 1000*1000mm Diameter of drip hole: 0.4mm Distance between holes: 20mm Test flow: 1~1.5mm/min (IPX1), 3~3.5mm/min (IPX2)
Test time	Set according to test standard (range 1-9999 seconds)
Water dripping height	200mm (automatically controlled by test equipment)
Water Drainage	Automatically empties tank water after test completion, requires 0.6MPa compressed air source (provided by user)
Equipment body material	Industrial aluminum alloy
Installation method	Wall Mount
Turntable	1-5r/min, adjustable
Control	PLC & 7" touch screen
